VELA Low/medium Position Cistern

VELA Low/medium Position Cistern

Appreciated for many years for its extraordinary silence, the VELA external cistern maintains its privileged position as a reliable, solid and compatible product with multiple bathroom design situations for all uses of the building.

Request information
Scarica Documenti

Quiet and reliable: this is VELA!

Made of bright white anti-yellowing ABS, the VELA external system is equipped with high quality components, starting with the patented Magnetic soundproofed fill valve. The VELA external cistern is equipped with 2 mechanically operated buttons for choosing the amount of water to be discharged, but it is possible – once installed on the wall – to transform the operation from mechanical to pneumatic for the connection of the remote button.

Application conditions and characteristics of the VELA box
  • For low and medium position installations
  • For remote flushing operation (with pneumatic button)
  • White anti-yellowing ABS material
  • Insulated against condensation
  • 2-quantity rinsing with controls on the lid
  • 1 quantity rinse with pneumatic control
  • 10 dB Magnetic fill valve
  • Side and central water connection
  • Transformable from mechanical to pneumatic activation

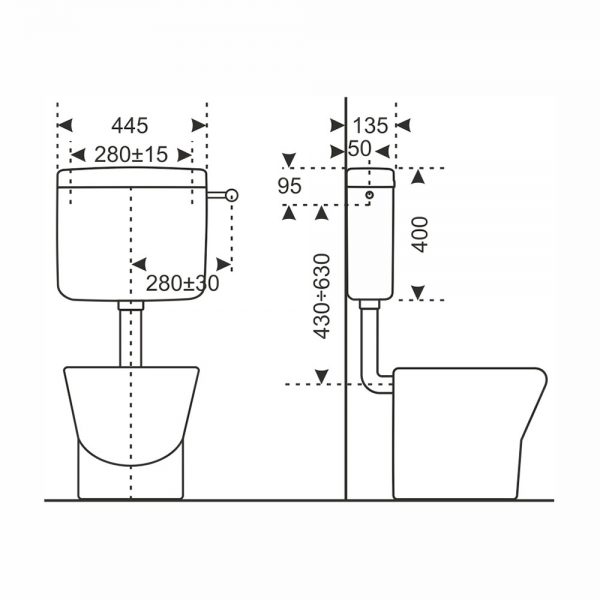

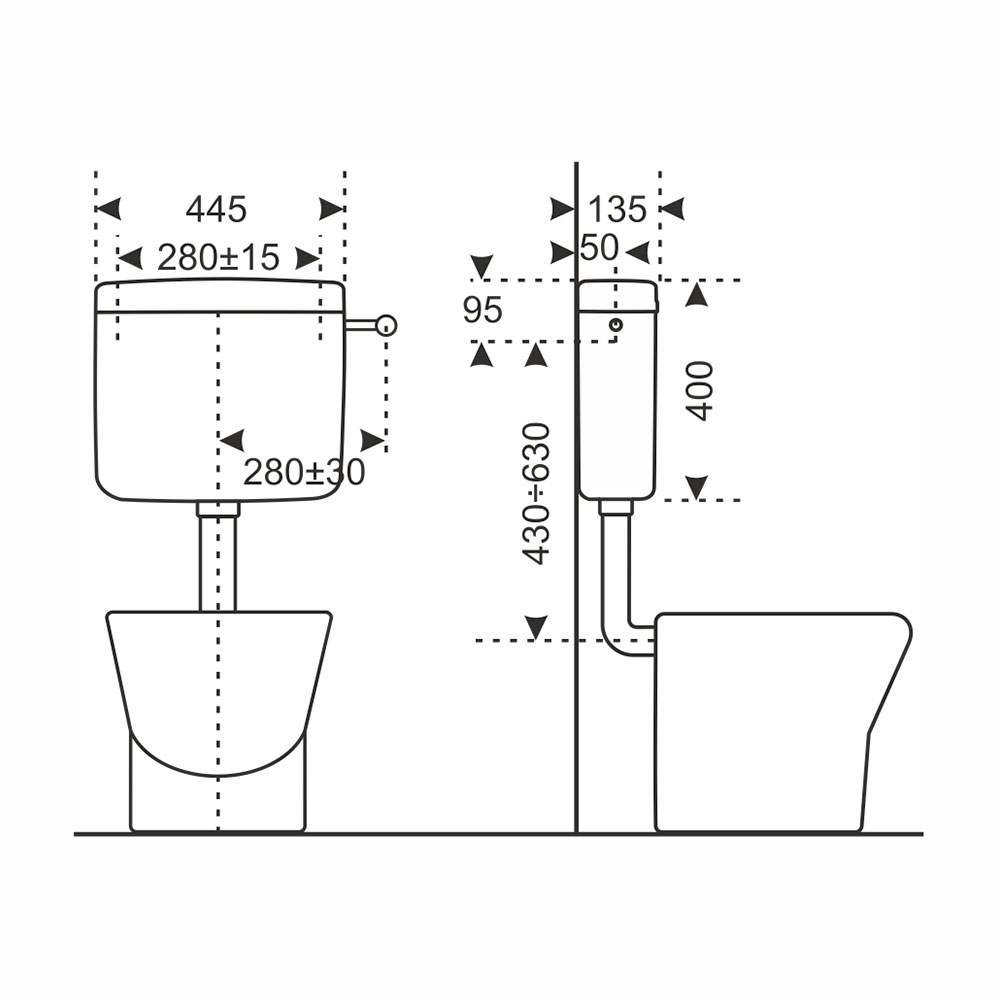

  • Dimensions in mm: L445xH400xP135
Documents
  • Scheda Tecnica
Application
Acustics

Learn more about the Italian regulation and discover the technical rules for a correct design and installation with no noise objection. To avoid noise disturbances and improve living comfort, nothing should be left to chance!
