What is the meaning of the SDR abbreviation with which the PP-R pipe is classified? SDR (Standard Dimension Ratio) identifies the “standard dimensional ratio” that is a method for evaluating the durability of a pipe with respect to pressure. The standard size ratio describes the correlation between pipe size and pipe wall thickness.

• Random copolymer polypropylene tubes available in 4 versions:

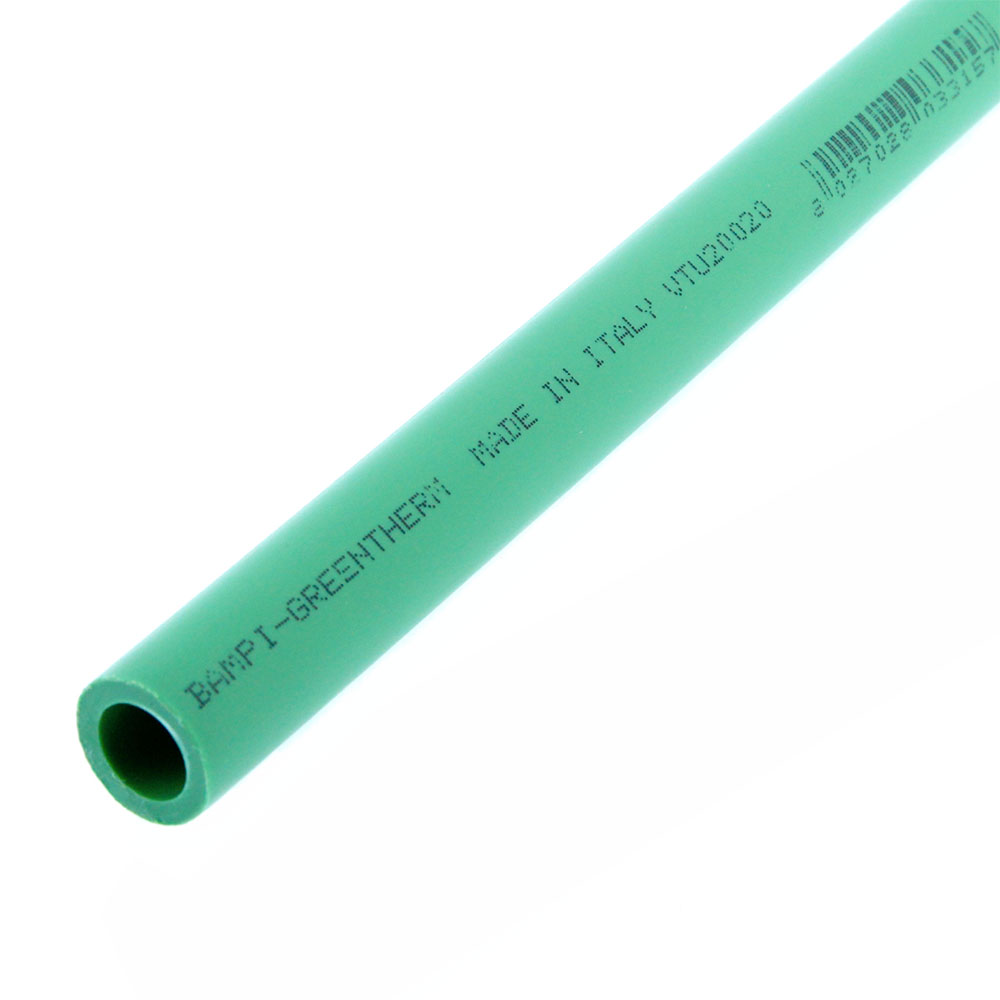

  • GREENTHERM SDR 6 single layer (green color)
  • GREENTHERM SDR 7.4 FASER 3-layer (green color)
  • GREENTHERM SDR 7.4 FASER UV Resistance 3 layers (black color)
  • POLO-KLIMA SDR 11 with 5-layer mineral fibers (blue color with green lines)
    ATTENTION: this type of pipe is not suitable for the transport of drinking water
• Random polypropylene fittings with optional brass insert
• Maximum operating temperature: see table in relation to pressure and operating time
• Maximum operating pressure: see table in relation to temperature and operating time
• Minimum operating temperature (for refrigeration systems) equal to 6 ° C
• Internal roughness of 0.007 mm.
• Thermal conductivity equal to 0.024 mm / mK
• Coefficient of linear thermal expansion equal to 0.15 mm / mK
• Melting point achievable at 140-150 ° C
• Welding times: see table in relation to diameter and environmental conditions
• Diameters of 20, 25, 32, 40, 50, 63, 75, 90, 110 mm.
• 10-year warranty against manufacturing defects
